I-WONDER SK-E2D ELECTRIC SKATEBOARD
| PERFORMANCE | Top Speed | 20KPH(12.5MPH) | 40KPH(25MPH) |
| Range | 8KM(5MILES) | 28KM(17.4MILES) |
| Climbing Gradient | | 25% |
| Recharge Time | 1.5H-2H | 5H |
| Max Load | 100KGS(220LBS) | 100KGS(220LBS) |
| Dustproof&Waterproof Level | IP64 | IP64 |
| Regenerative Brakes | √ | √ |
| TECH SPECS | Motors | Single 150w | Dual 800W*2 |
| Wheels | 70mm | 83mm |
| Battery Cells | LG 18650 | LG 18650 |
| Battery Capacity | 29.4V 2.2Ah(65Wh) | 36V 6.6Ah(280Wh) |
| Deck Material | 9 layers of Canada maple | 9 layers of Canada maple |
| Remote | Bluetooth | Bluetooth |
| Charger | UL,CE,CB,FCC certified | UL,CE,CB,FCC certified |
PACKAGE INFO
*Estimated data | *Deck Length | 660mm(26inch) | 912mm(36inch) |
| *Net Weight | 4.5KGS(10LBS) | 7.1KGS(15.6LBS) |
| *Gross Weight | 6.5KGS(14LBS) | 10.1KGS(22.2LBS) |
| *Carton Size | 730*330*180mm | 980*340*220mm |
OPTIONAL FUNCTION
● included
○ optional
— not available | Replaceable Tire | — | — |
| Front Lights | ○ | ● |
| Integrated Side Lights | ○ | ● |
| Tail Lights | ○ | ● |
| On Board Power Display | ● | ● |
| Quick Removable Battery | — | — |
| USB Output | ○ | ● |
Q. HOW TO RE-SYNC THE REMOTE CONTROL
Answer:
a)start the power button
find the green light is on , then press the power button several
seconds until green light is flashing
c) start the remote control and heard the " DI " sound
d) take a needle to press the reset button
e) find the light is fast flashing , then you can use it
Q. Does your electric Skateboards suffer disconnection issues like
other Electric Skateboards?
Answer: Although you have a very low chance of this happening, any
product controlled via wireless remote control can suffer
interference and disconnection issues. It is therefore advisable
not to leave breaking to the last minute and always bear this mind.
Of course again, this could be a lot more dangerous in traffic, so
please use common sense whilst riding and wear protective clothing.
Q. I live in a rainy country will my Electric Skateboard be ok in
the rain?
Answer: Yes, riding in light rain and surfaces that are a 'little'
wet is fine, however riding through puddles and saturating the
underside of the skateboard is not recommended and liquid damage
will not be honoured in our warranty.
Q. Can I order spare parts or upgrade my electric Skateboard?
Answer: Yes you can order all spares from us cheaply and the parts
are very easy to change! In terms of upgrading and modding your
board, do so at your own risk.
Q. Can I do tricks and jumps?
Answer: Our Electric Skateboard is a very durable piece of
transportation equipment and it's great fun to ride at speed and
carve, it will absorb bumps happily. However it is not designed for
ramps and tricks.
Q.Can I use your electric skateboard for my daily commute?
Answer: Laws are different, in different countries, you would have
to find out, we accept no liability for dangerous riding in
restricted areas with busy traffic and riding in traffic is not
advised by us, therefore you do so at your own risk.
Q. I heard the remote is pretty delicate, is that true?
Answer: it's true the remote is the most fragile part, if you ride
carefully with this in mind there should not be any problems,
however if you do happen to launch the remote you can buy a new one
cheaply from us!
Q.how does the warranty work?
Answer: Firstly we do have a low failure rate but if the
un-expected does happen, it's good that you know how we operate, so
have a quick read below.
Due to the nature of the product, we offer a 50 day warranty with
the skateboard, we would like to offer longer and in some cases if
we feel it's completely genuine and nothing to do with rider abuse
we will honour the warranty for up to 3 months.
(of course you have a 7 day return/refund warranty, however the
product must be returned to us in perfect unused condition in the
original packaging, in some cases we will refund you for the
shipping too, we will look at each case differently).

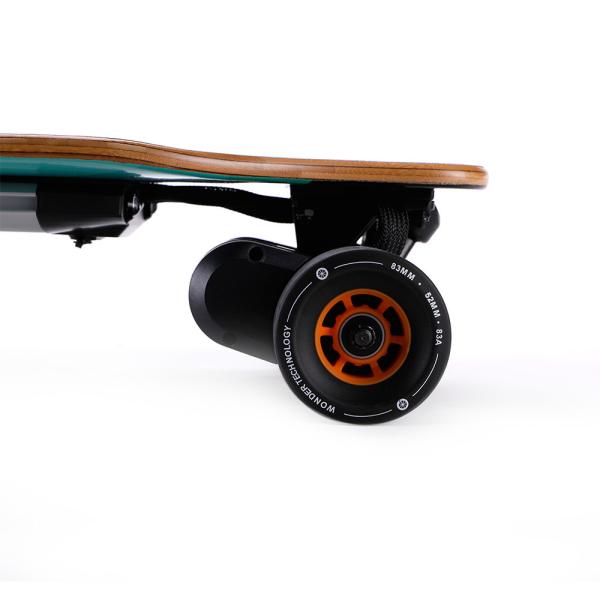

New Dual HUB System makes no excuses when it come to performance.
With reduced tension in the wheels,this board function as normal
longboard when off or out of battery
BUILT-IN SAFETY LIGHTS.
Our built-in LED lights make our riders highly visible to traffic,
pedestrians, and even at night! Safety is our top priority, and the
I-Wonder SK-E2 has got you covered!
